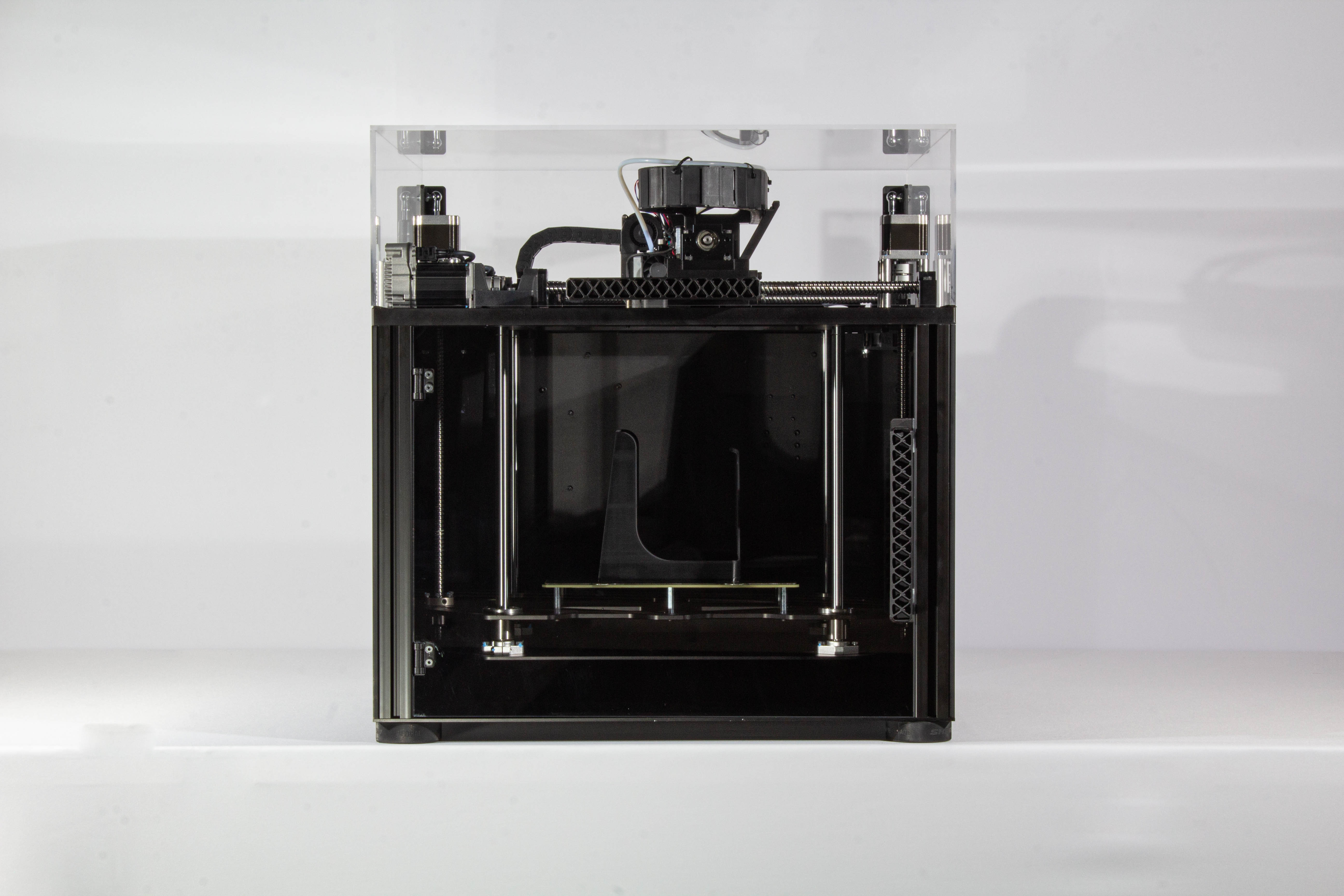

Pantheon's HS3 3D printer produces parts 3x-5x faster than leading competitors. With multiple patents pending, Pantheon's High speed deposition technology creates parts Incredibly fast, without sacrificing quality.

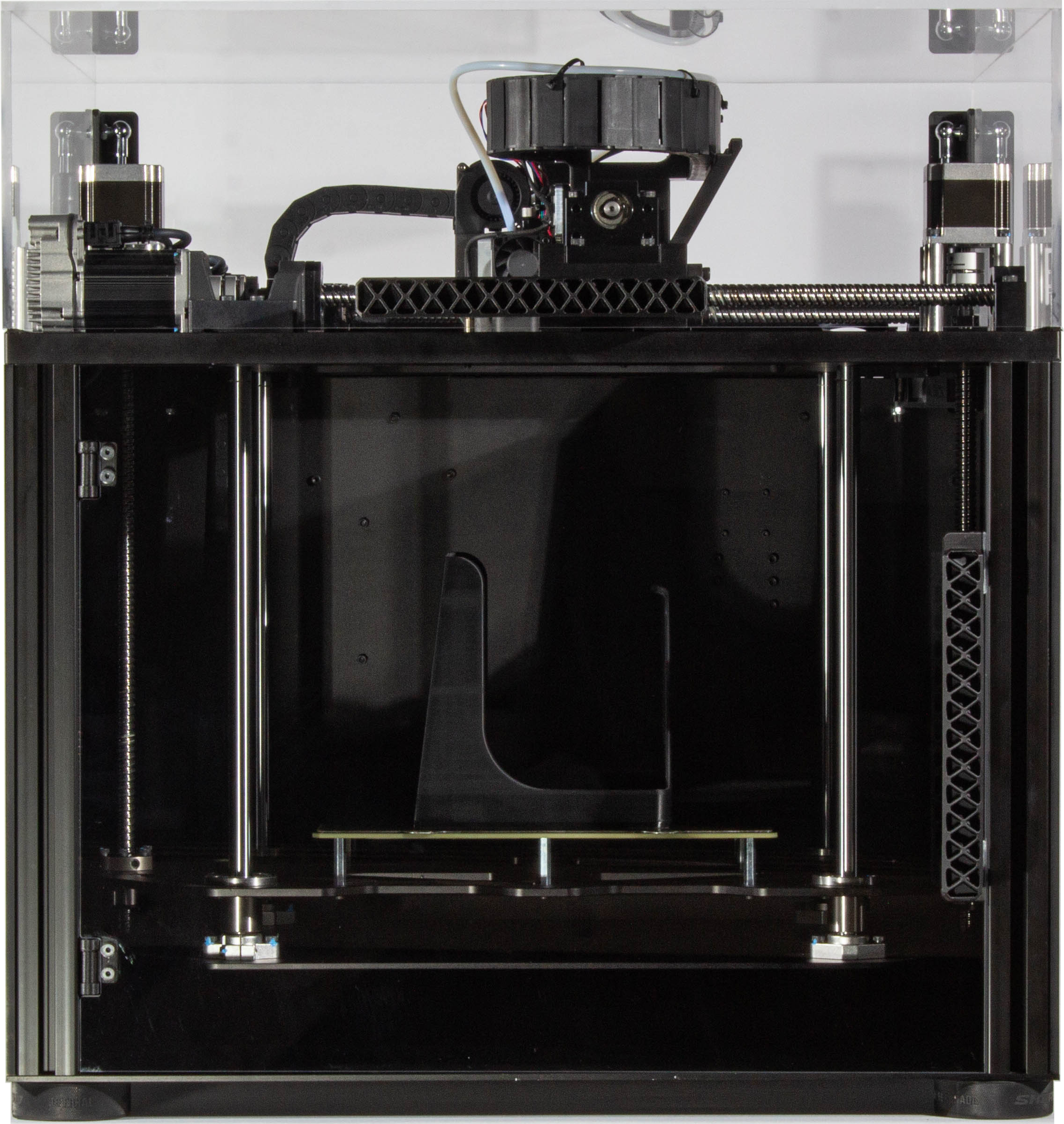

With a billet aluminum gantry, ball screw-driven axes, and closed-loop servos, the HS3 delivers the same industry leading accuracy on day one as day 10,000. The next generation motion system and print head also deliver amazing mechanical tolerances and beautiful surface finish.

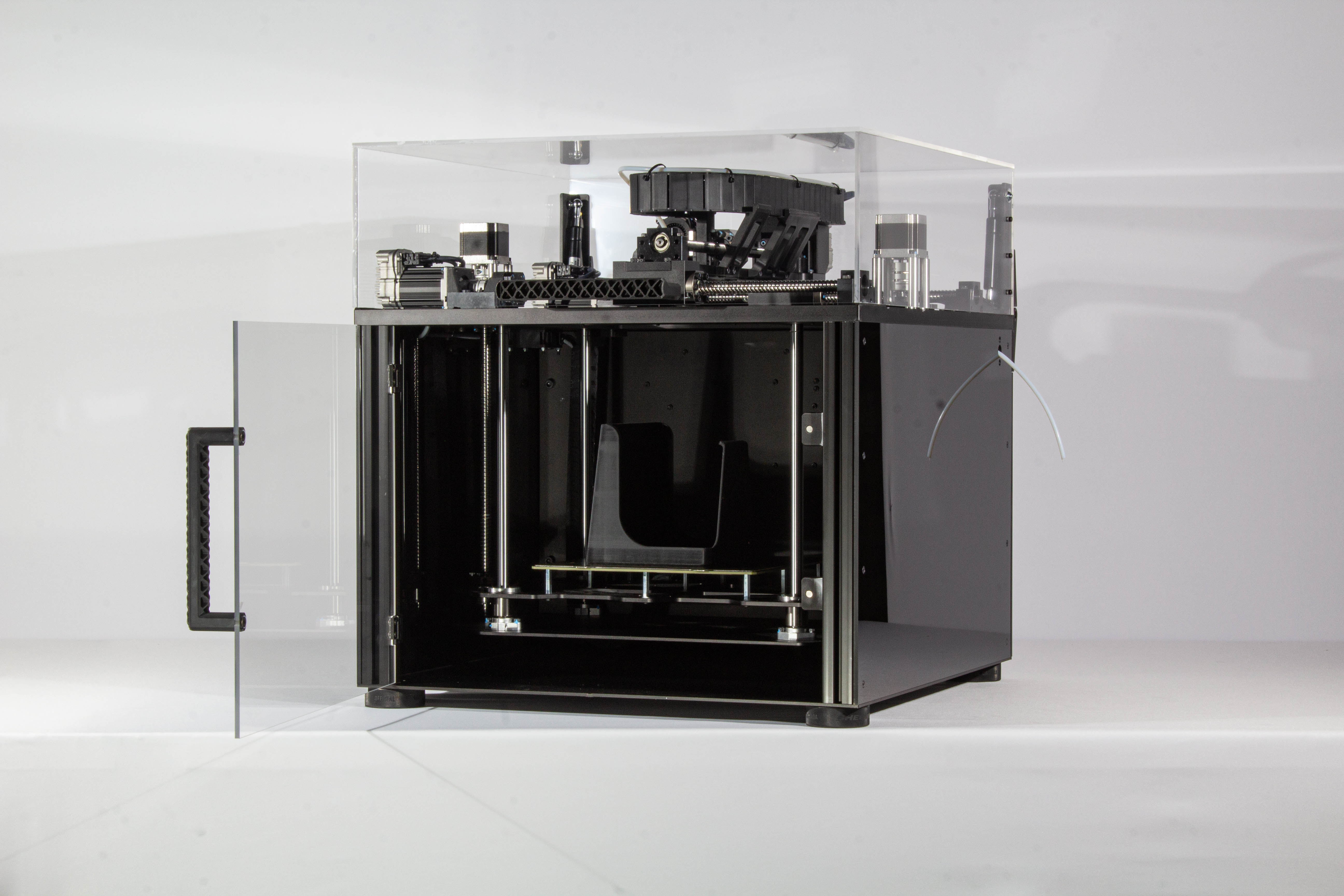

Pantheon HS3 is designed for industrial applications where maximum uptime is critical. We understand the rigors of time-sensitive, high uptime use and have created a bomb-proof construction to match these demands.

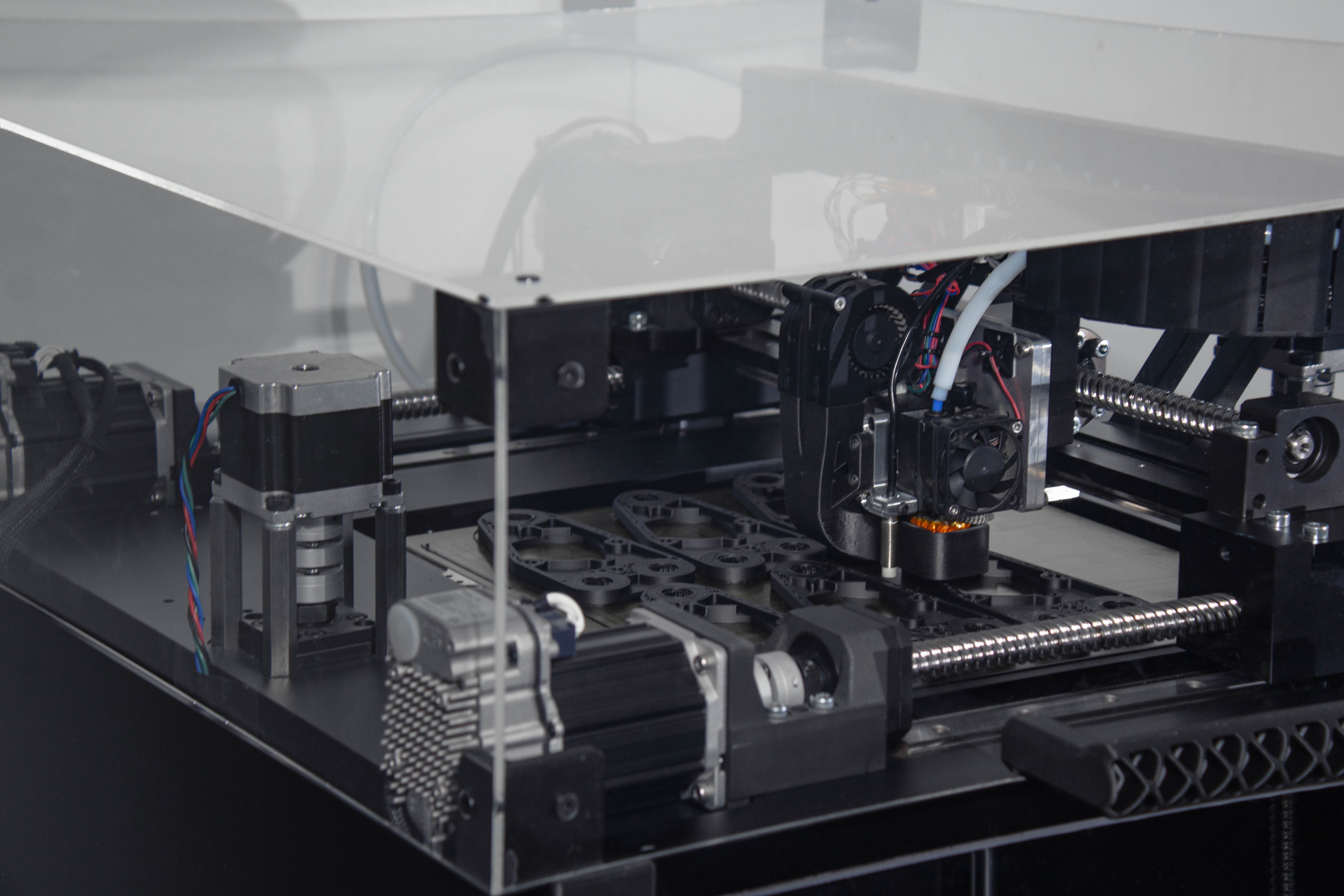

The Pantheon HS3 uses precision ball screws and linear guides for all axes. Unlike timing belts used in other 3D printers, ball screws do not meaningfully stretch or drift even under extreme acceleration, repeated loading or increased temperatures, ensuring part quality and repeatable results while greatly increasing print speeds and reliability.

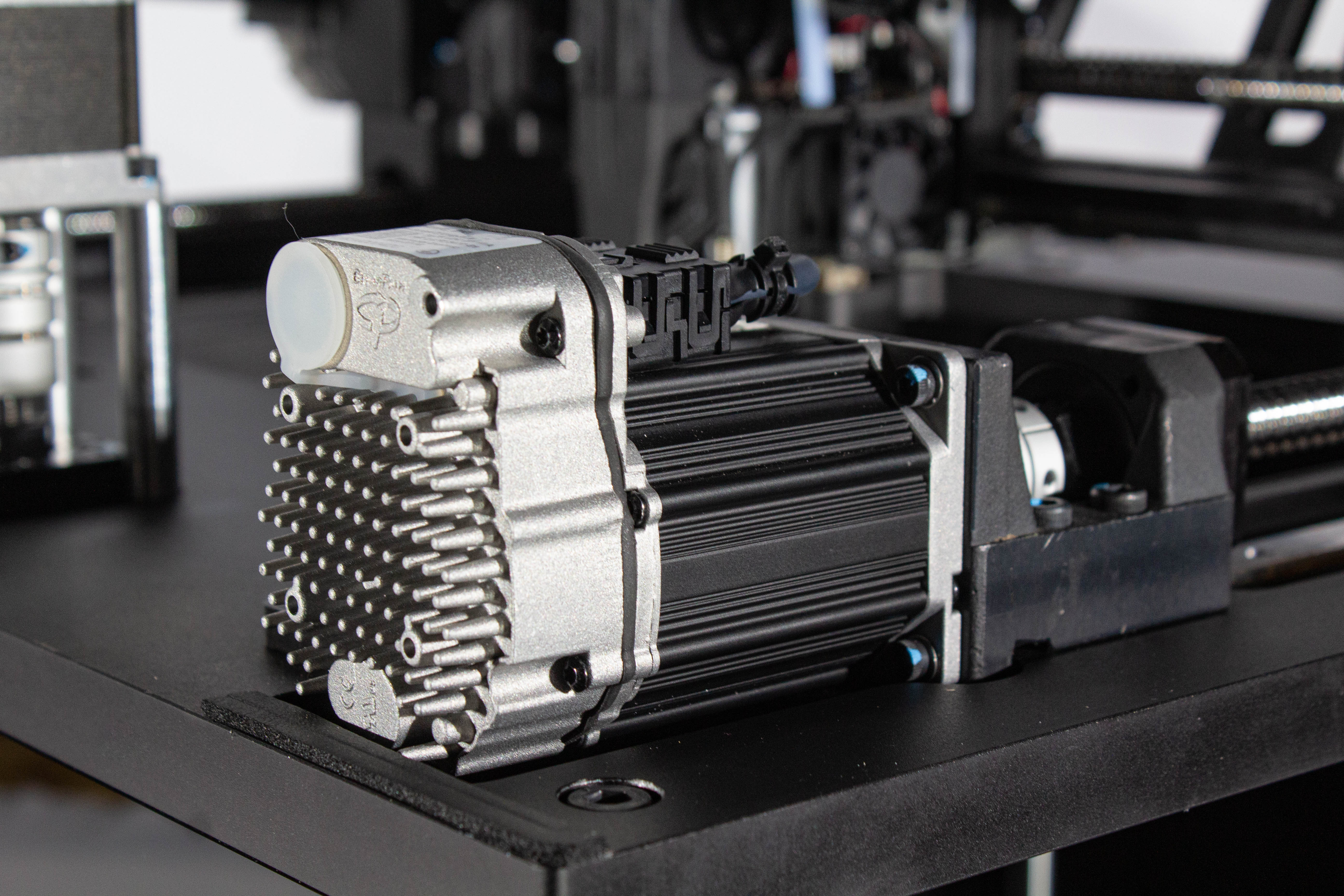

The Pantheon HS3 uses Technik ClearPath® servomotors on the X and Y axis. Brushless motors allow for whisper-quiet high speed and high acceleration moves. Servomotors are Closed loop controlled and will never "lose" a step mid-print.
Click here to visit Teknic's Product page

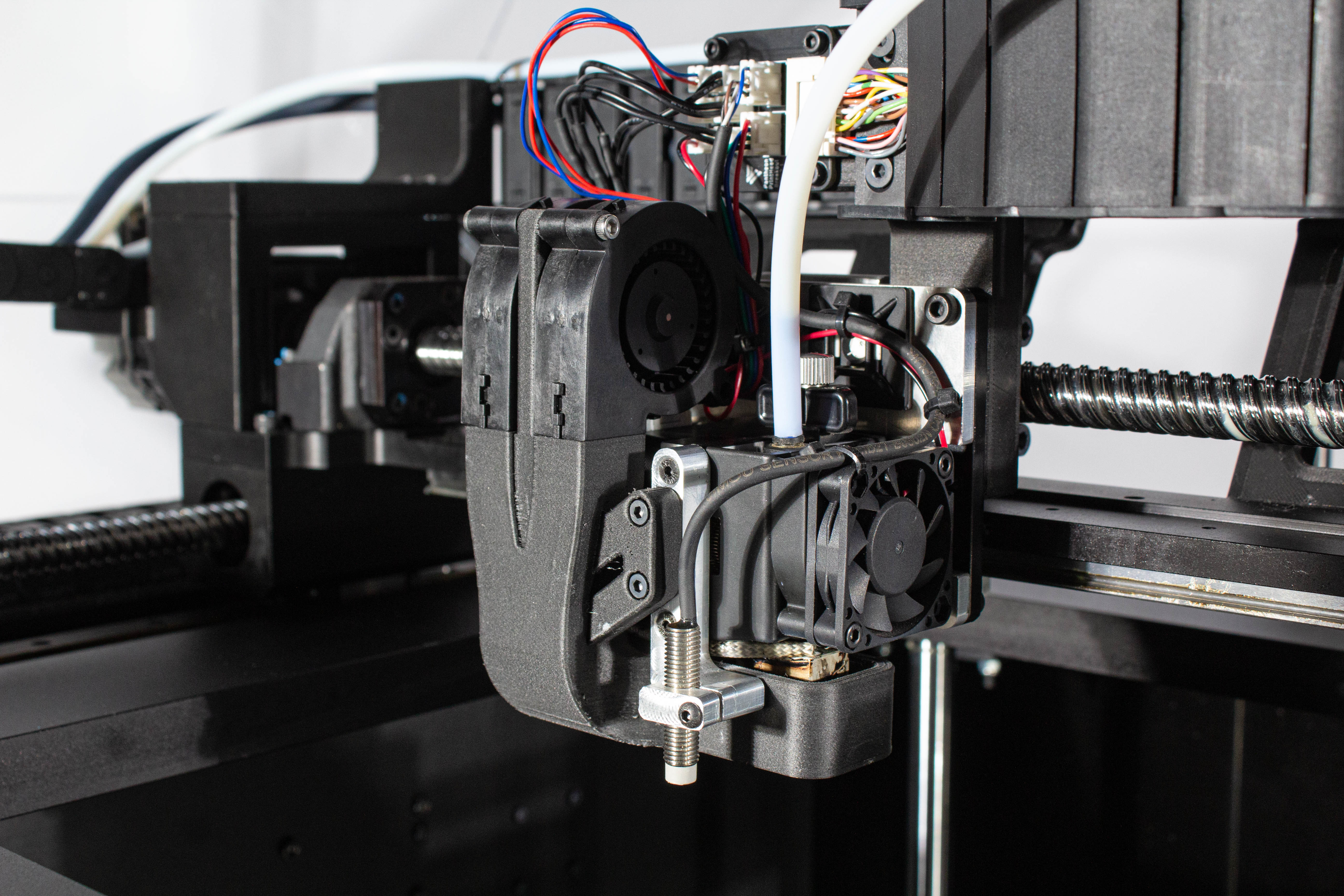

Pantheon's print head uses a fully steel hotend, 100w heaters, precision high-temperature sensing and an air deflector to protect the nozzle tip from temperature fluctuation.
Pre production units:
Coupled with the E3D Hemera - the most powerful extruder on the market. This workhorse of a print head allows for high material flows with unparalleled reliability and precision.
Production units:
Coming spring 2022, Pantheon's advanced extruder features powerful closed-loop control and nozzle contact probing to get perfect prints every time. Maximum flow rates of 120mm^3/s+.

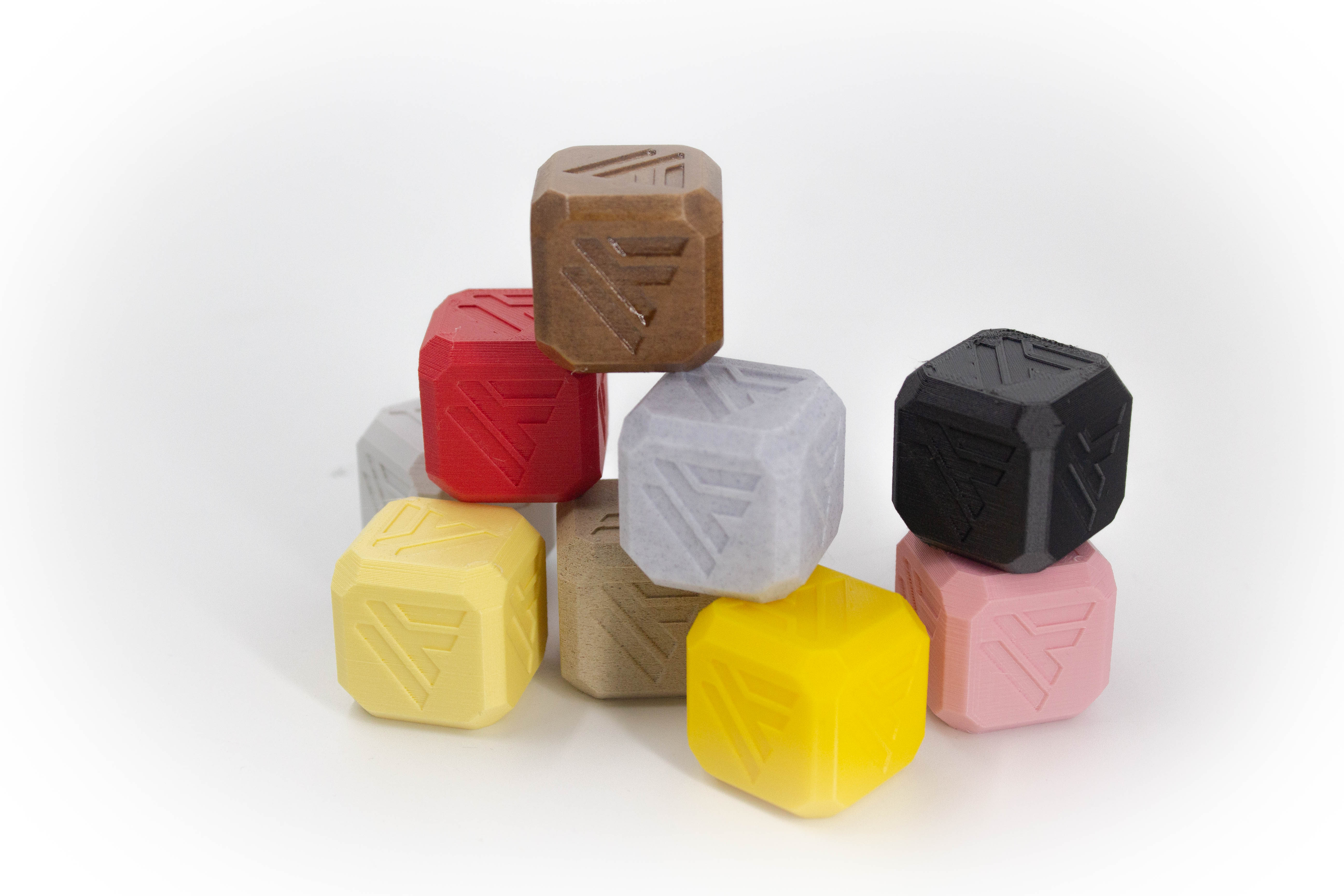

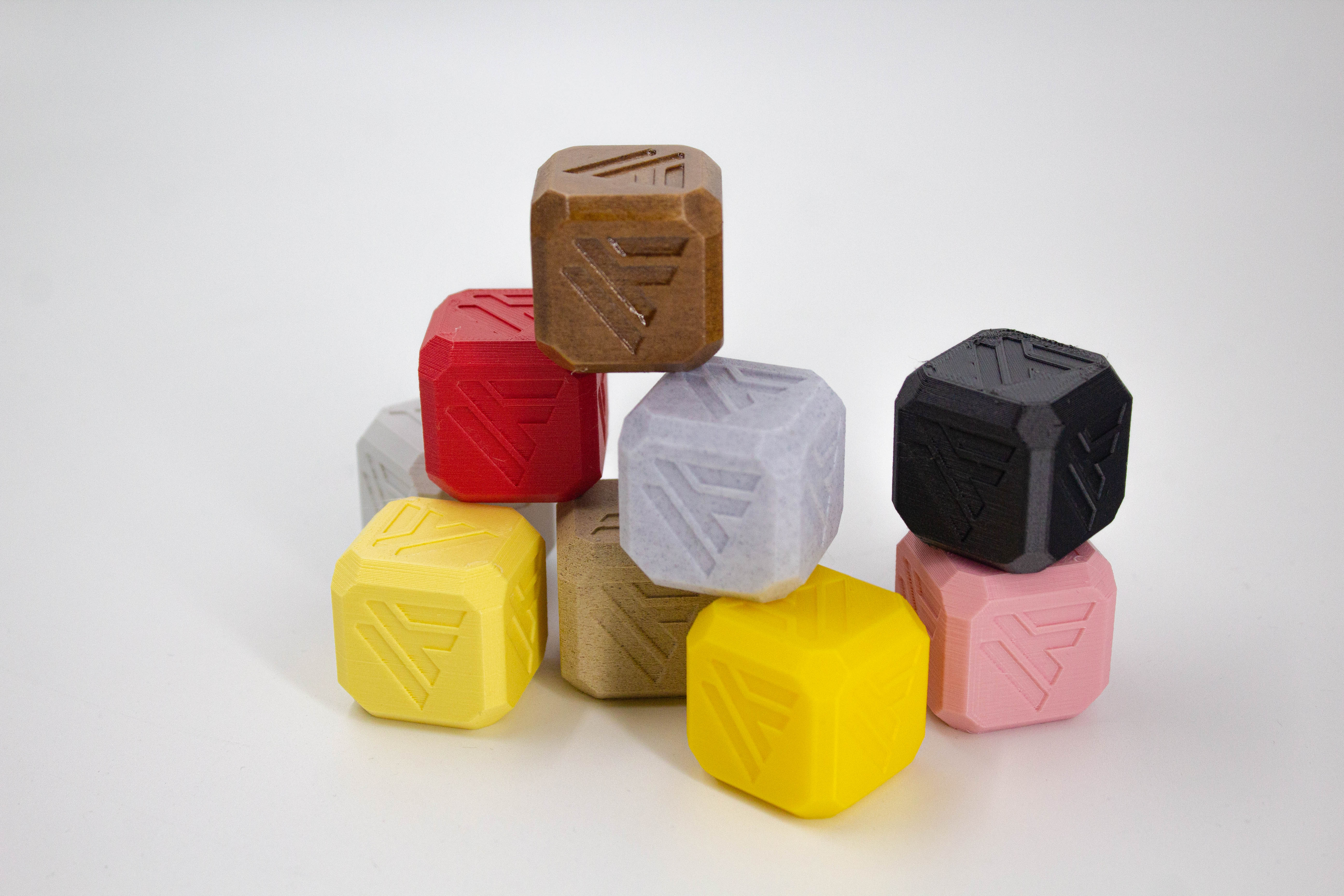

The Pantheon HS3 is ready for Engineering-grade composite materials out of the box as well as a wide variety of standard materials. Pantheons filament library is open and our factory configured profiles are growing every month!
Compatibility includes PLA | ABS | ASA | PC | TPU | Nylon | PETG | Glass Fiber and Carbon Fiber infused filament and many more

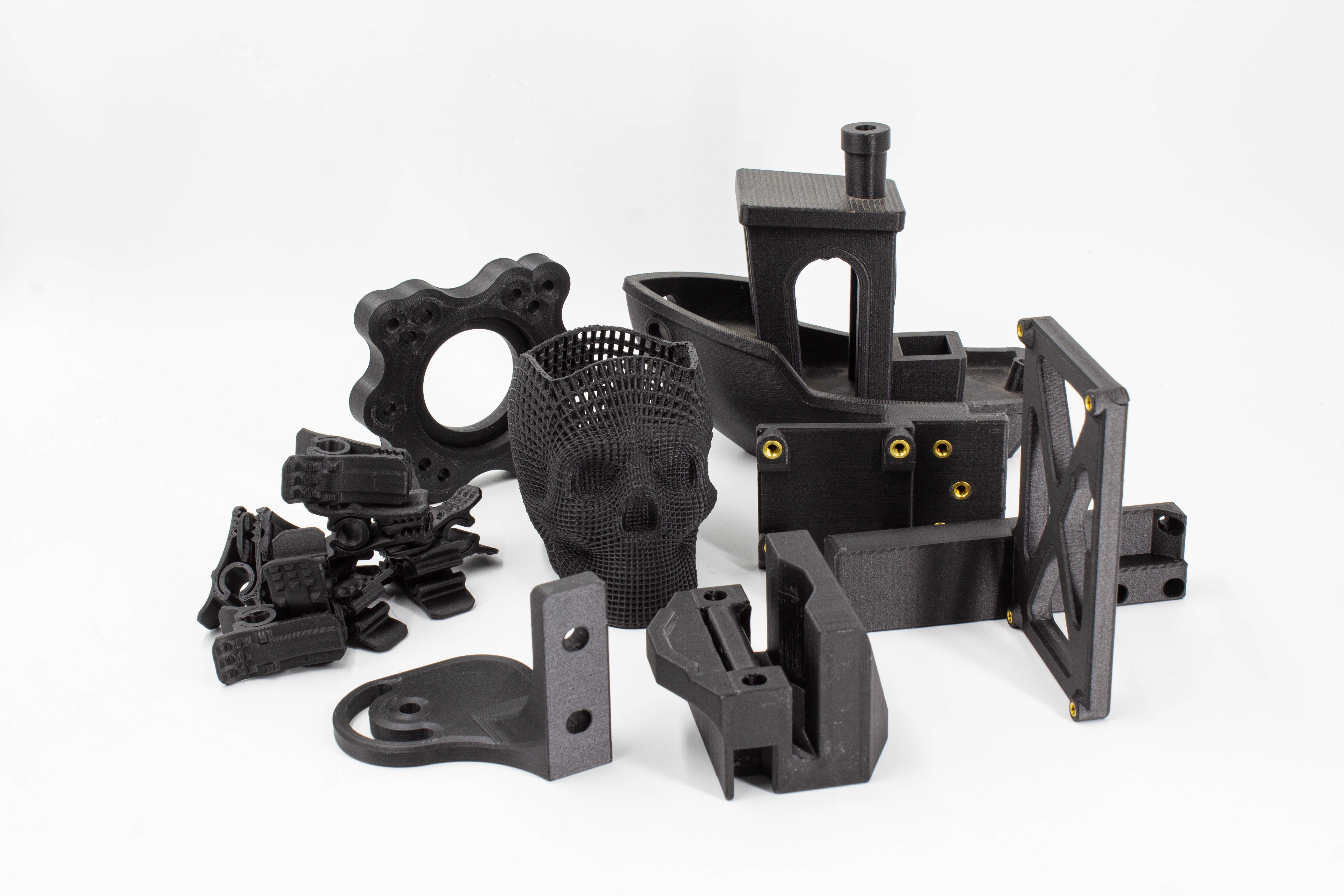

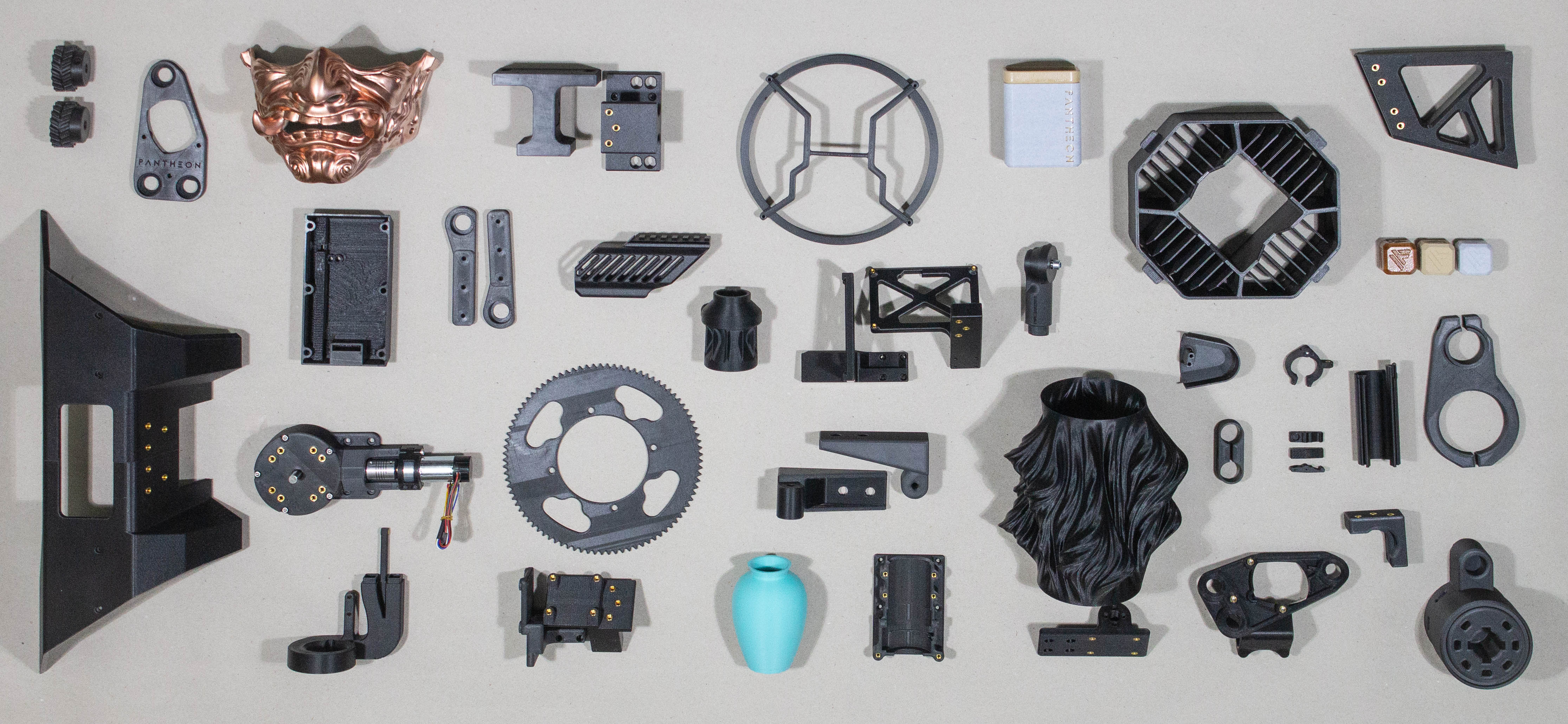

Pantheon printers deliver unrivaled part quality and accuracy. Even with difficult to print materials like carbon and glass fiber composites and flexible filaments. In Most cases we can achieve 0.125mm [5 thou] accuracy and a surface roughness of 3.2 µm Ra

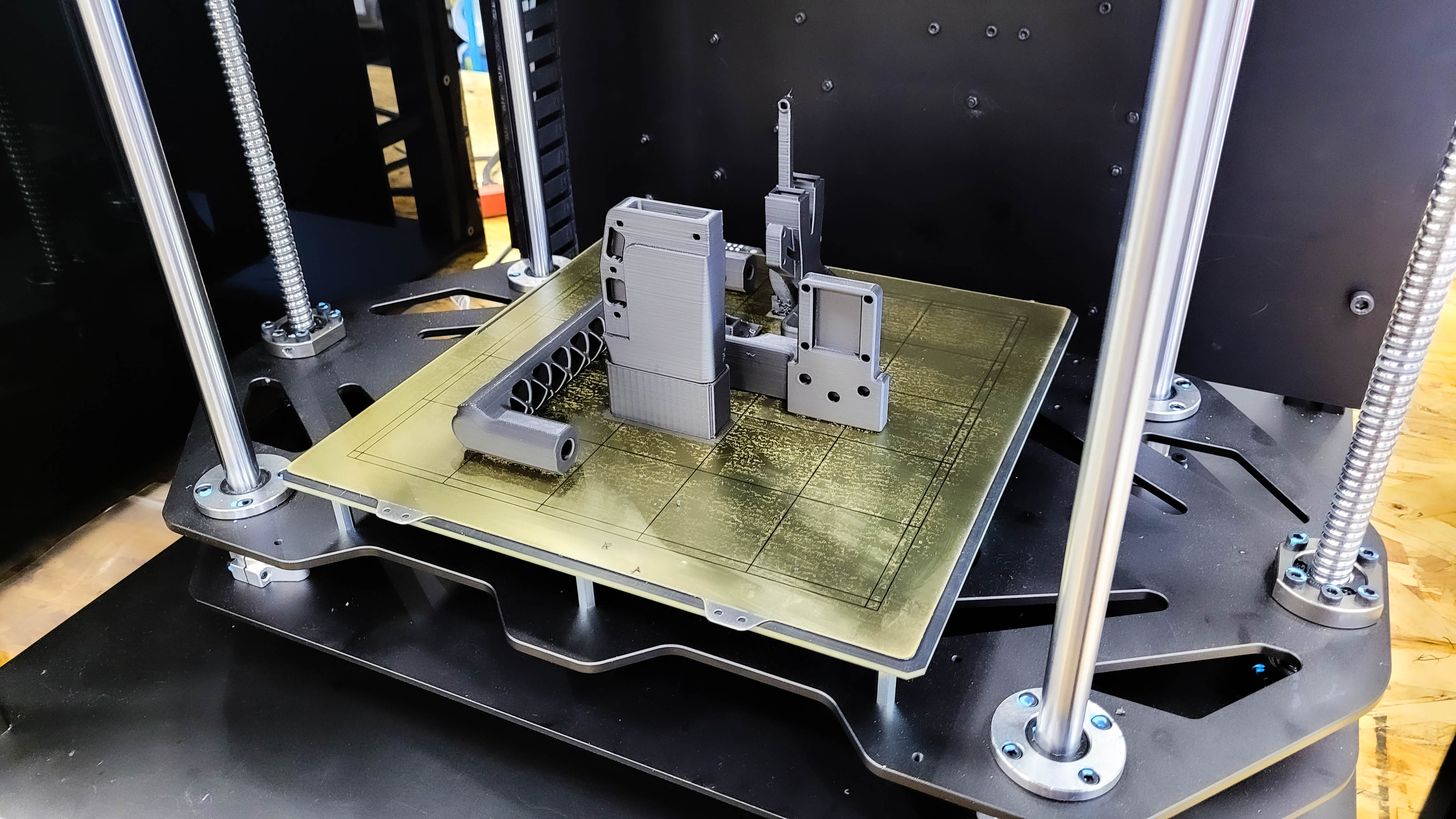

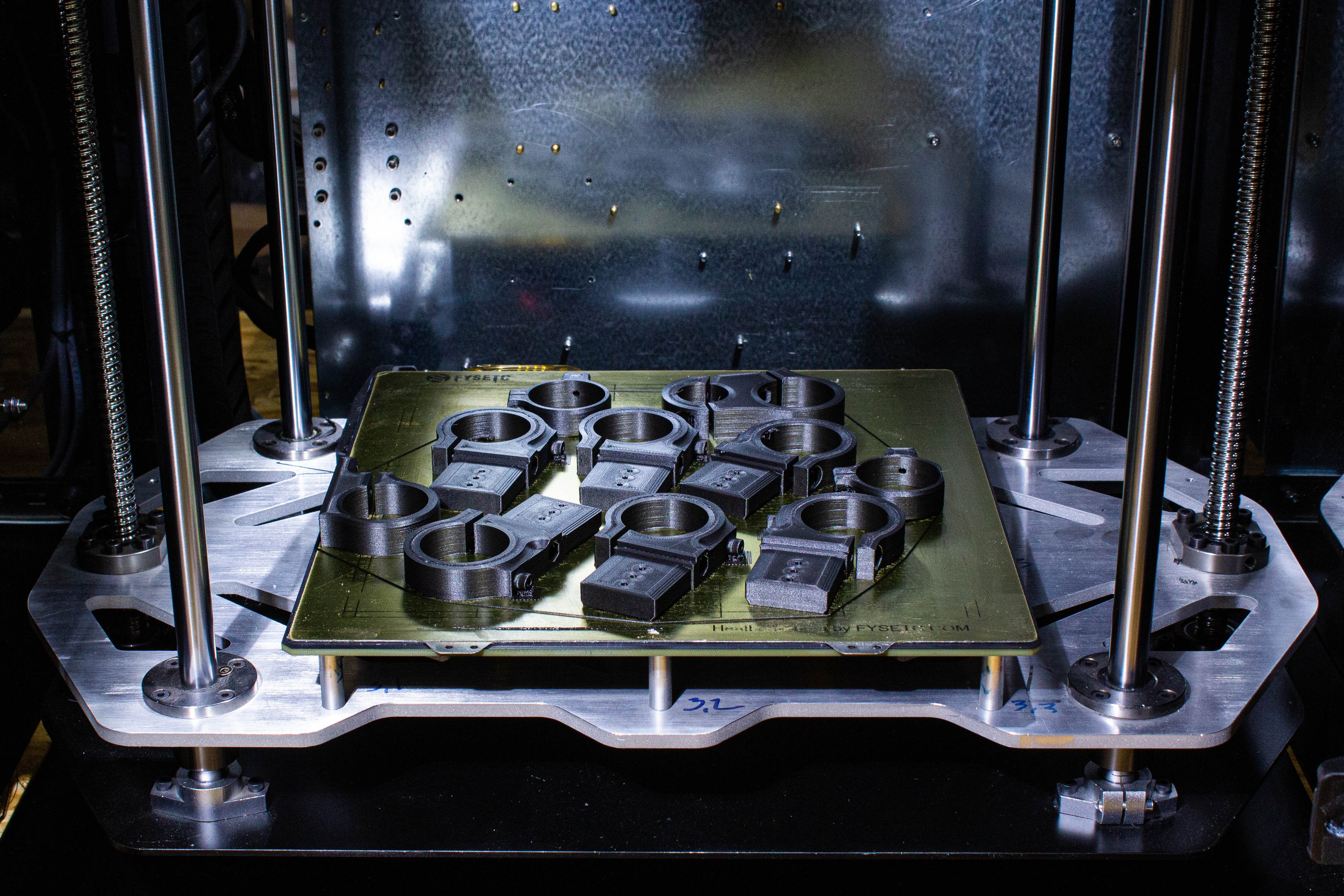

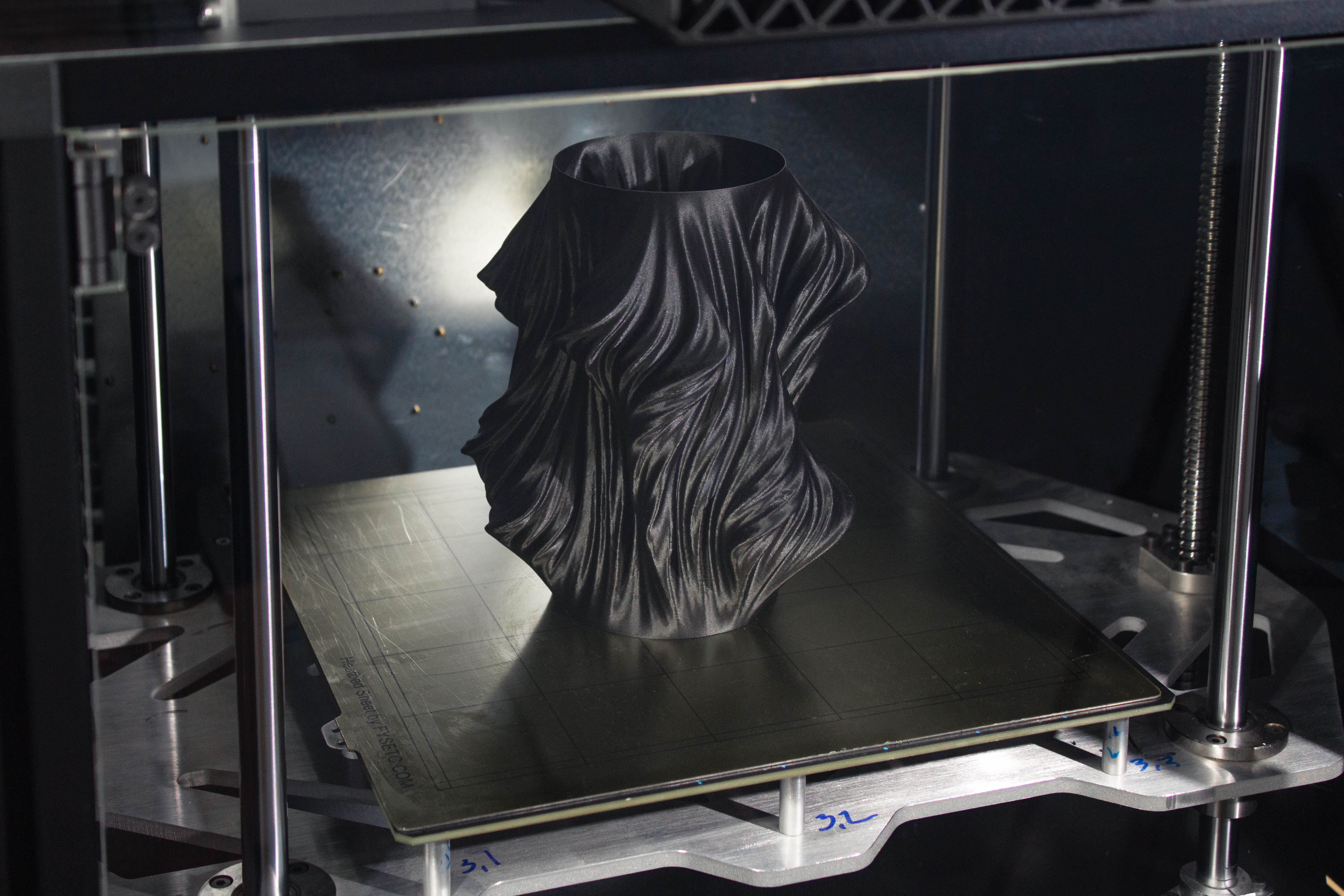

Pantheon uses a removable spring steel bed plate with double sided PEI. A probe is also located on the tool head for mesh bed leveling and a perfect 1st layer every time.
Pre production units:
500W Magnetic Bed - PCB with standoff mounting
Production units:
500W Magnetic Bed - Precision aluminum tooling plate with kinematic mounting

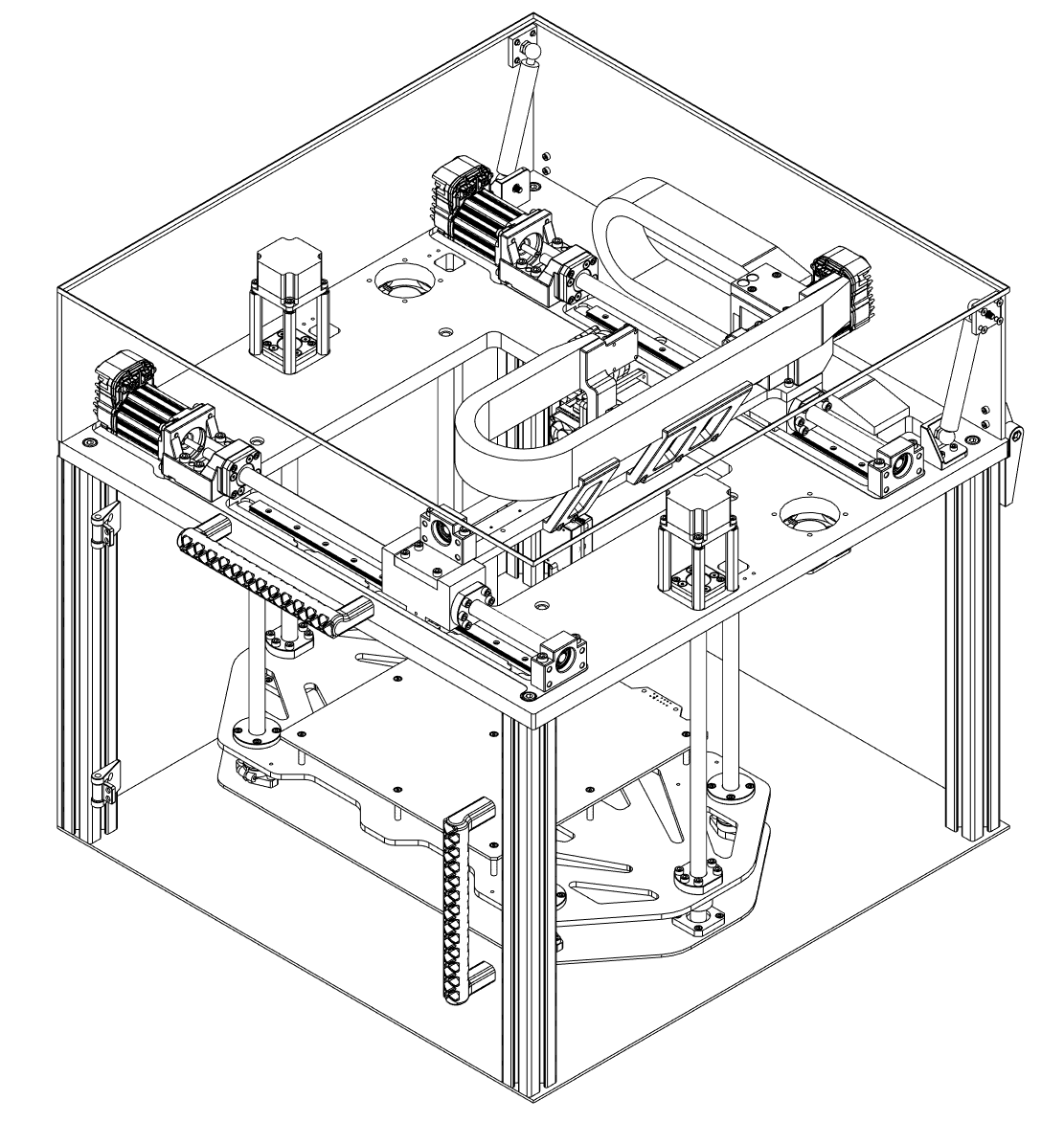

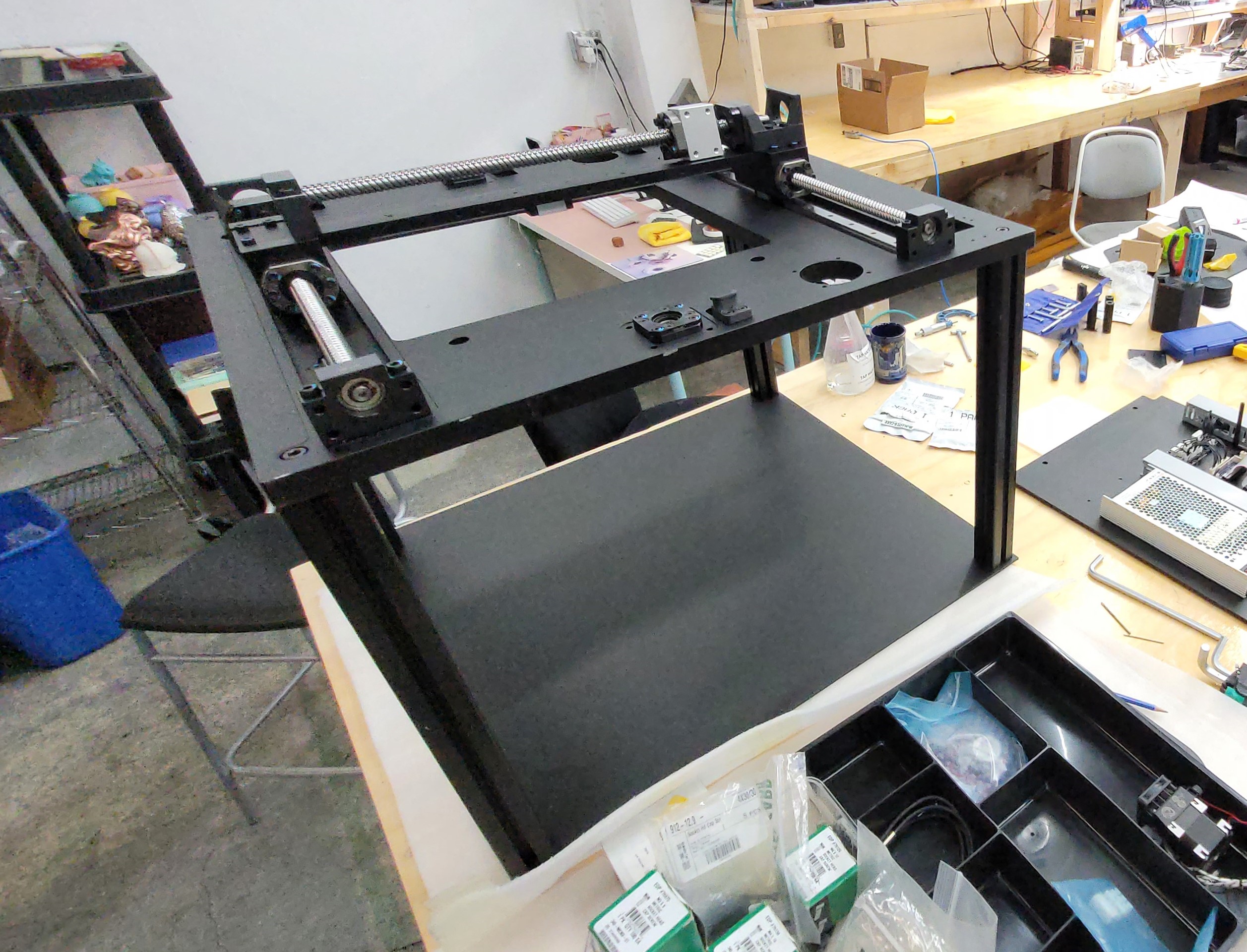

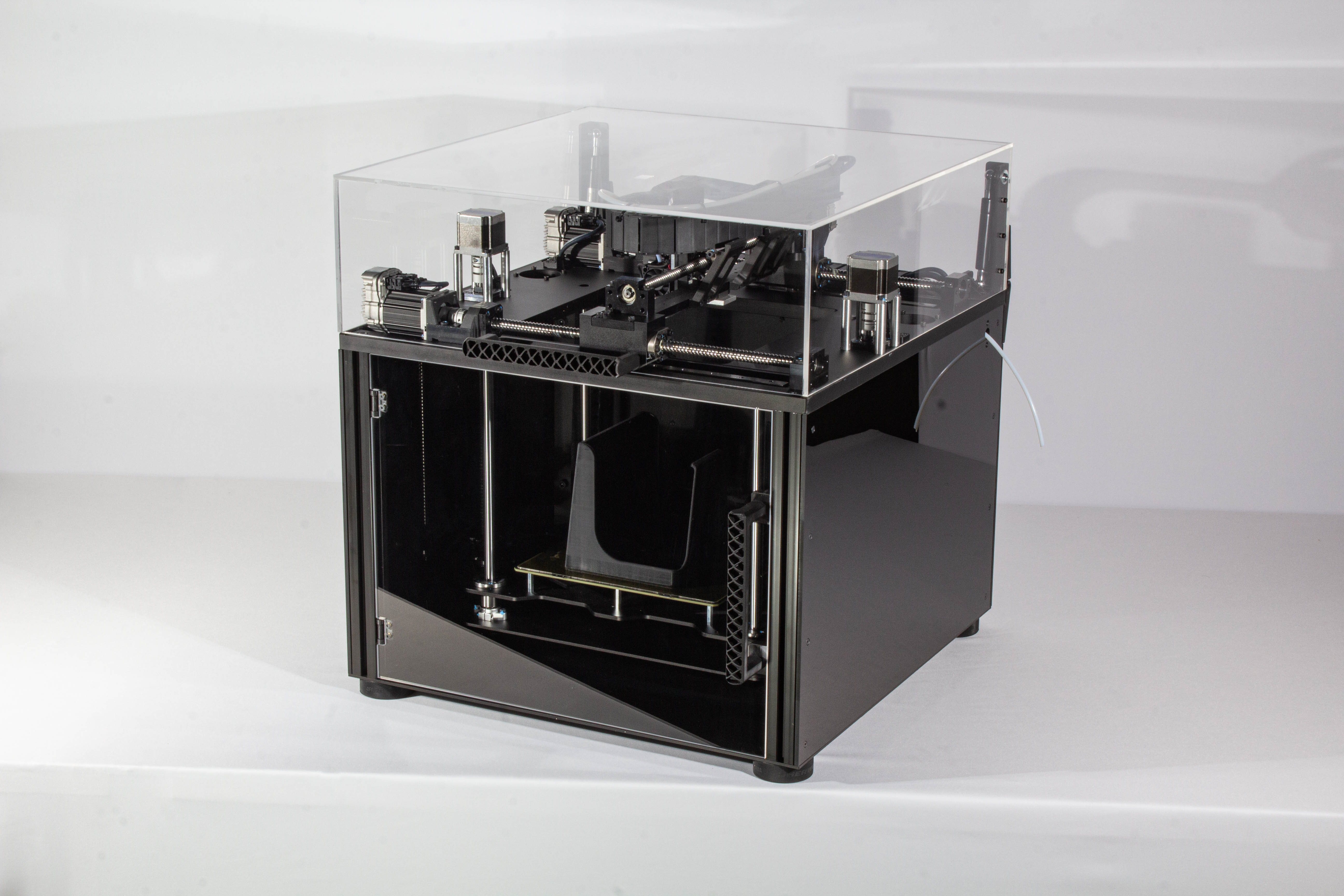

With a first-of-its kind patent-pending billet aluminum frame, the HS3 can produce perfect parts at incredible speeds again and again without drifting out of alignment. This bombproof construction can maintain the high dimensional accuracy and squareness it was built with regardless of what you throw at it.

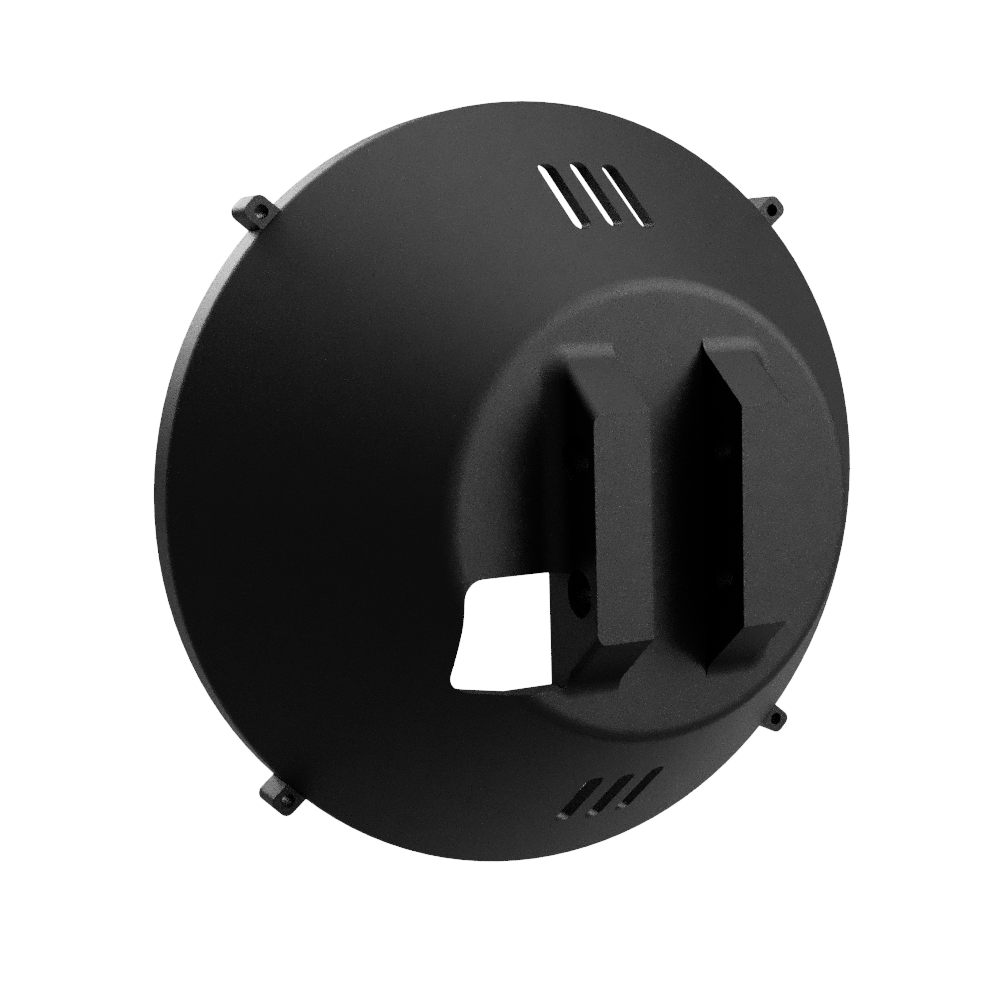

.png)
Print Settings:
Nozzle diameter: 0.4mm
Layer Height: 200 μm
Material: Carbon Fiber Reinforced PETG
Walls: 5 |2mm
Floor and Celling: 8 layers | 1.6mm
Infill: 35% grid
Supports: Yes
Pantheon HS3 Results:
Weight: 328g
Print Time: 7hr 21m
Competitor's print time: 23hrs

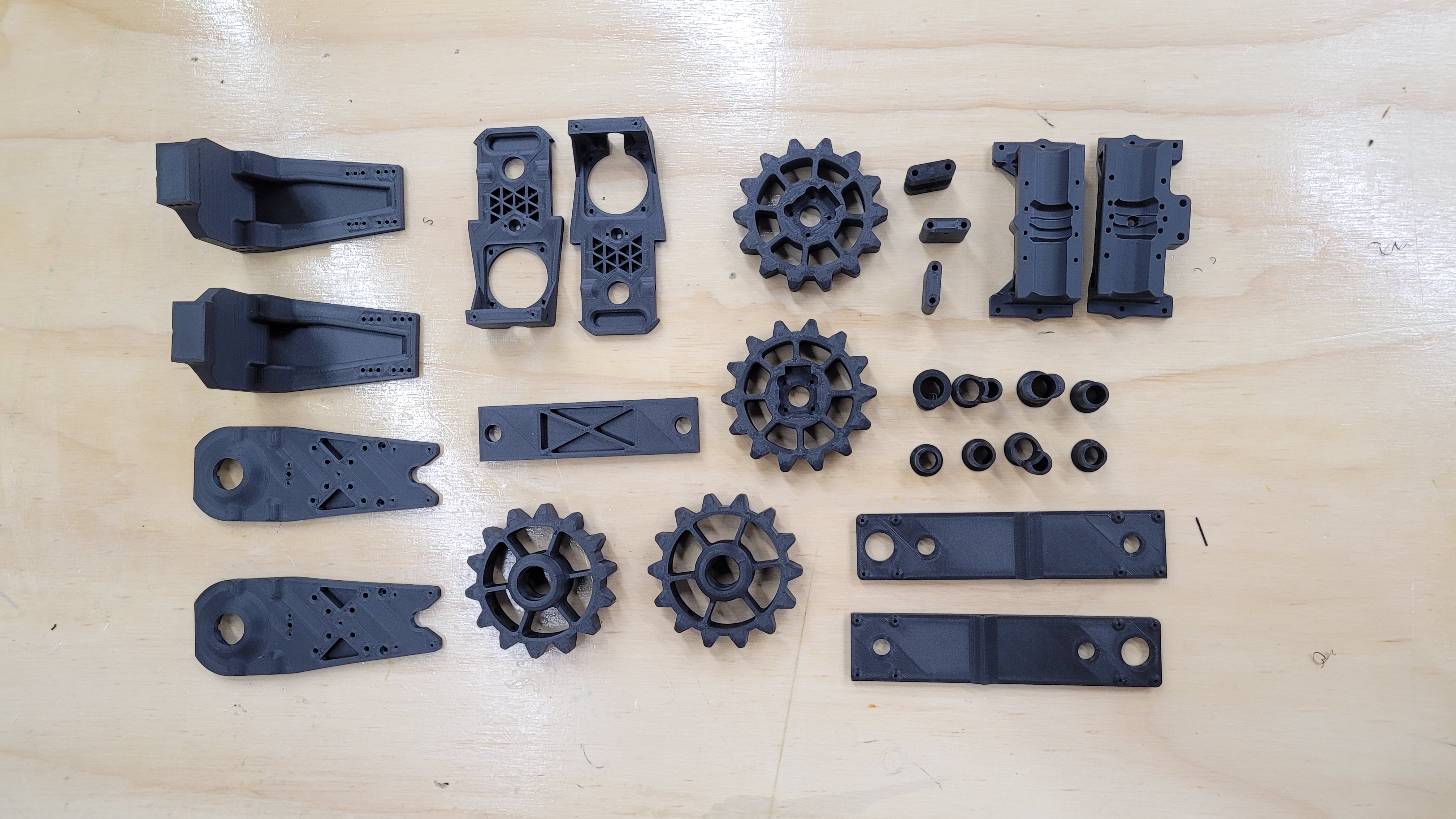

.png)

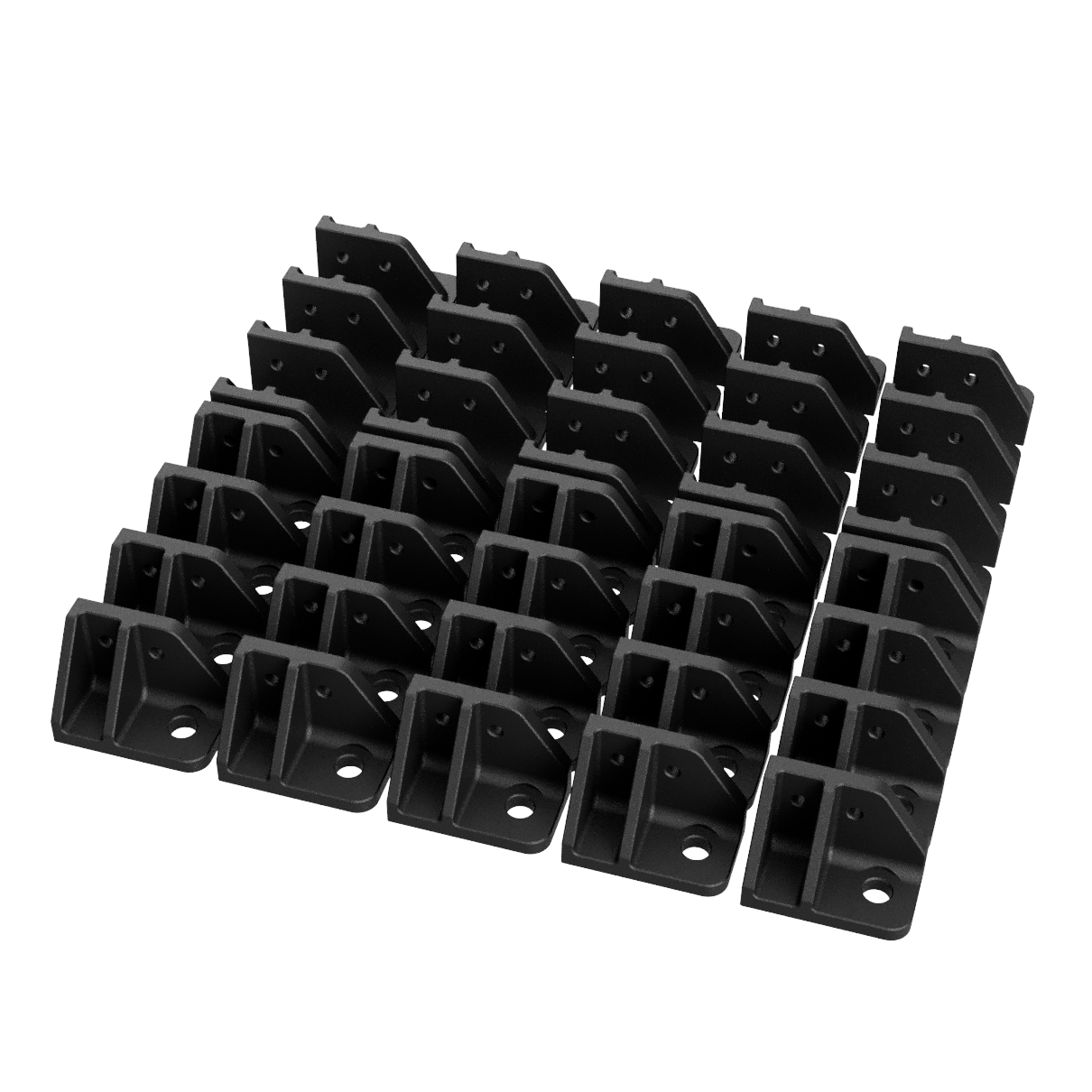

Print Settings:
Nozzle diameter: 0.4mm
Layer Height: 200 μm
Part Count : 40
Material: Carbon Fiber Reinforced Polycarbonate
Walls: 4 |1.67mm
Floor and Celling: 6 layers | 1.2mm
Infill: 30% grid
Supports: No
Pantheon HS3 Results:
Weight: 910g
Print Time: 22h 54m
Competitor's print time: 74hrs

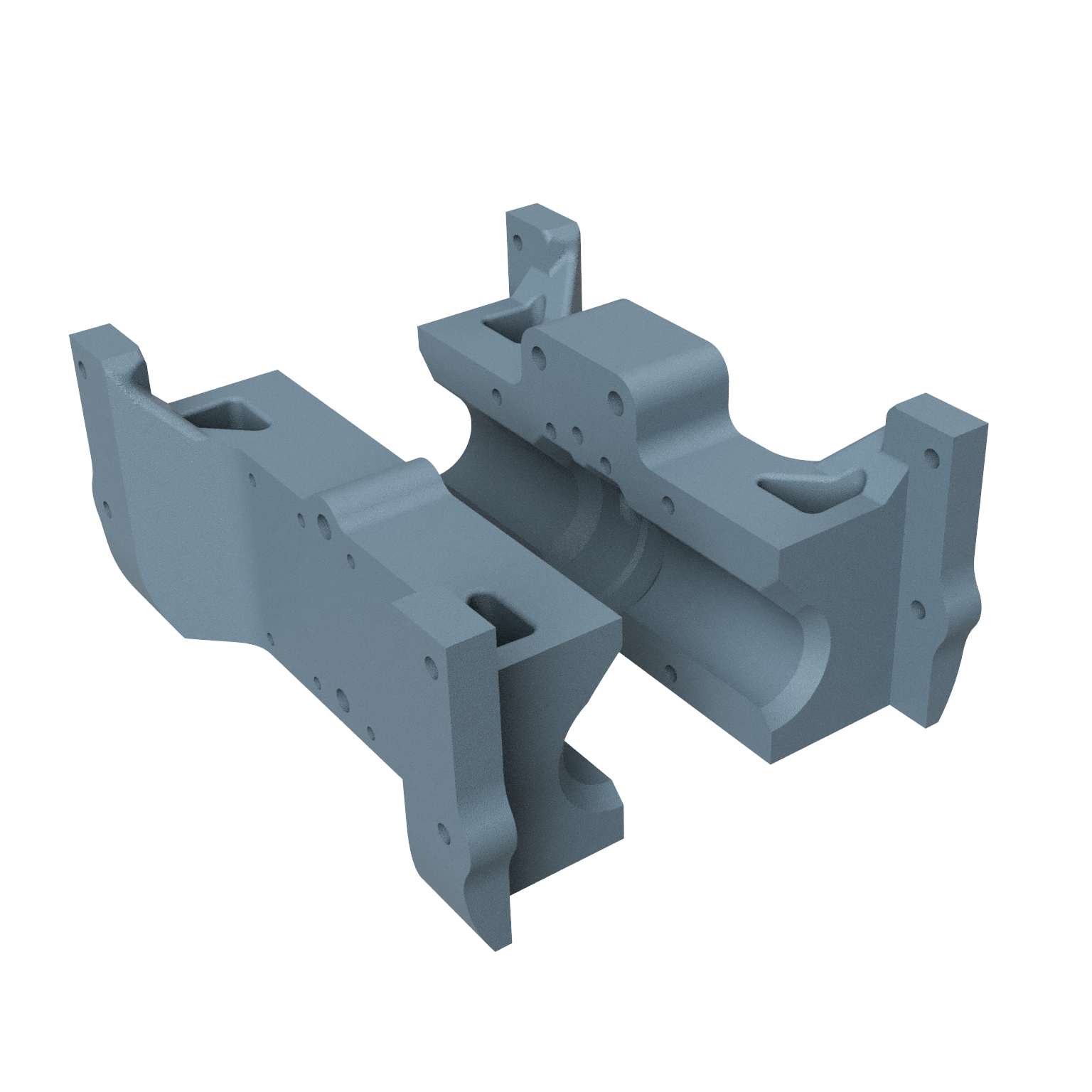

_2021-Aug-29_08-36-39PM-000_CustomizedView11882282912.png)
Print Settings:
Nozzle diameter: 0.4mm
Layer Height: 200 μm
Material: HS-PLA
Walls: 2 | 0.86mm
Floor and Celling: 5 layers | 1.0mm
Infill: 20% grid
Supports: No
Pantheon HS3 Results:
Weight: 118g
Print Time: 3h 36m
Competitor's print time: 10hrs
Fused Filament Fabrication (FFF), Pantheon High speed deposition technologies
300mm x 300mm x 300mm
High quality print head: 35mm^3/s. High flow print head: 120mm^3/s +
50 - 400 microns
6.25 μm, 6.25 μm, 3.12 μm [x,y,z]
1000mm/s +
400mm/s +
9000mm/s^2
Coated Removable Spring steel build plate with auto bed leveling
120c Max, N42SH Neodymium magnets
Passively Heated to 40C+
Direct drive, dual drive roller, High torque motor (E3D Hemera - subject to change)
0.4mm | 0.5mm | 0.6mm, 0.4 hardened steel nozzle included standard
100W heaters, PT1000 sensor, Tool steel with integrated Aluminum cooling air deflector
500c Max
630mm wide | 720mm deep | 695mm tall , 25" wide | 28.5" deep | 27.5" tall [for pre production units]
46.7kg (103lbs) [for pre production units]
100V - 240V AC, 50/60 Hz, 750w
